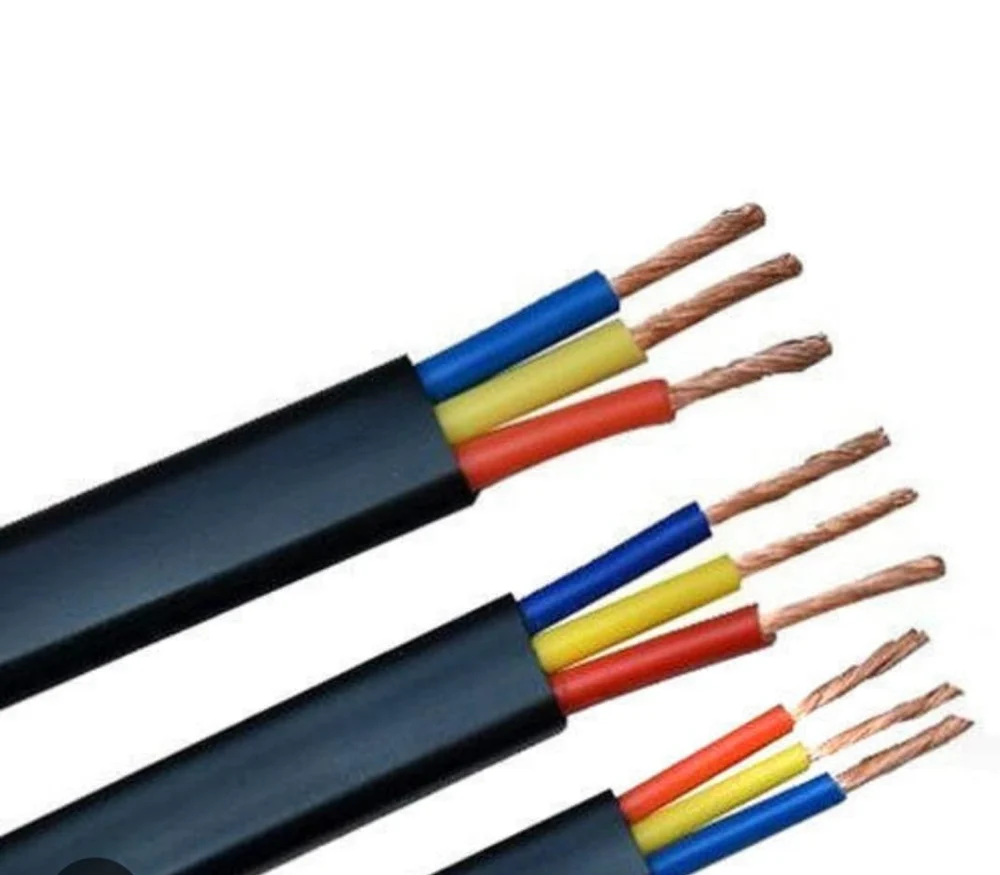

Flat Three Core Submersible Cables
High-quality flat submersible cables specially designed for submersible pump motors with superior flexibility, durability, and long-lasting electrical performance.
Submersible Pump Application
Specially engineered for submersible pump motors ensuring reliable underwater performance.
1100V Flexible Copper Conductors
Manufactured with multi-stranded flexible copper conductors for smooth conductivity and durability.
Heavy Duty Outer Sheath
Tough ST-1 PVC outer sheath provides enhanced protection against wear, moisture, and damage.
Product Overview
PATANIYA flat cables are specially designed for submersible pump motors and demanding electrical applications.
These cables feature 1100V grade multi-stranded flexible copper conductors with Type 'A' PVC insulation for excellent electrical safety.
The cables are protected with a durable ST-1 PVC outer sheath, ensuring long service life, flexibility, and resistance to harsh operating environments.
Technical Data
| Area (mm²) | Structure (No./Dia) | Insulation Thickness | Sheath Thickness | Overall Dimensions | Current Rating |
|---|---|---|---|---|---|
| 1.5 | 30/0.25 | 0.8 mm | 0.9 mm | 12.2 × 5.8 mm | 15 Amps |
| 2.5 | 50/0.25 | 0.7 mm | 1.0 mm | 13.5 × 5.8 mm | 20 Amps |
| 4.0 | 56/0.30 | 0.8 mm | 1.0 mm | 14.6 × 6.2 mm | 26 Amps |
| 6.0 | 84/0.30 | 0.8 mm | 1.1 mm | 16.6 × 7.0 mm | 33 Amps |
