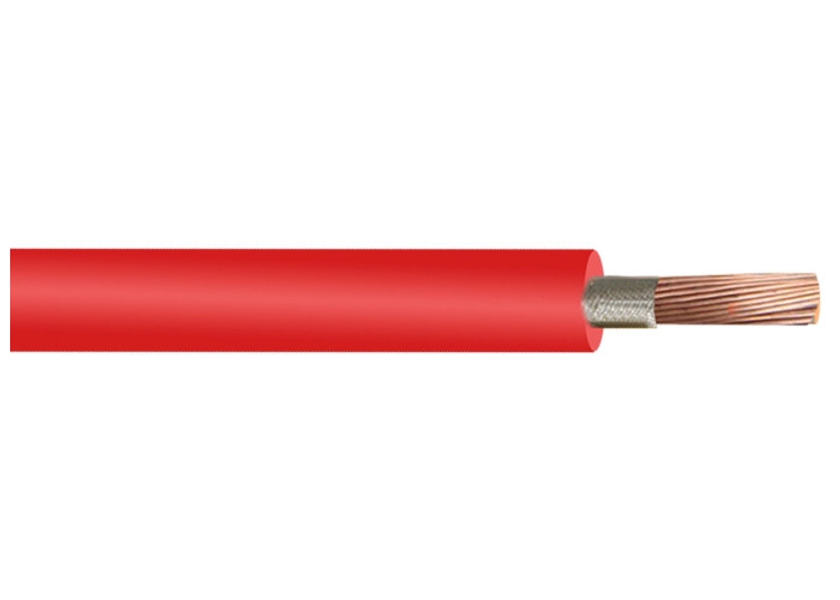

Single Core Flame Retardant Cable (FR)
Premium quality FR insulated cables designed for superior safety, reliability, and long-lasting electrical performance.
Flame Retardant PVC
1100V Grade
High Safety Standards
Industrial Strength
.png)
Product Overview
PATANIYA manufactures high-quality single-core twin insulated unsheathed cable with copper conductor in voltage grade 1100V conforming to IS: 694, IEC 60227, and BS 6004 standards.
The multi-strand bright electrolyte annealed copper conductors are insulated with Flame Retardant (FR) PVC compound to achieve higher oxygen and temperature index values, helping restrict the spread of fire.
High insulation resistance and excellent dielectric strength ensure safe, reliable, and efficient performance for residential, commercial, and industrial applications.
Technical Data (1100V)
| Nominal Area (mm²) | Conductor Structure | Insulation Thickness | Max DC Resistance | Current Rating |
|---|---|---|---|---|
| 0.75 | 24/0.20 | 0.6 mm | 26.0 Ω/km | 7 Amps |
| 1.0 | 14/0.30 | 0.7 mm | 18.1 Ω/km | 12 Amps |
| 1.5 | 22/0.30 | 0.7 mm | 12.1 Ω/km | 16 Amps |
| 2.5 | 36/0.30 | 0.8 mm | 7.41 Ω/km | 22 Amps |
| 4.0 | 56/0.30 | 0.8 mm | 4.95 Ω/km | 27 Amps |
| 6.0 | 84/0.30 | 0.8 mm | 3.30 Ω/km | 37 Amps |
