Heat Resistant Cables (HR)
High-performance heat resistant cables engineered to withstand elevated temperatures while delivering enhanced safety, durability, and superior current carrying capacity.
105°C Heat Resistance
Manufactured with specially formulated Heat Resistant PVC compound capable of withstanding temperatures up to 105°C.
30% Higher Current Capacity
Designed to provide 30% more current carrying capacity compared to standard cables.
Enhanced Protection
Excellent overload handling and superior insulation properties ensure safe and reliable performance.
.jpg)

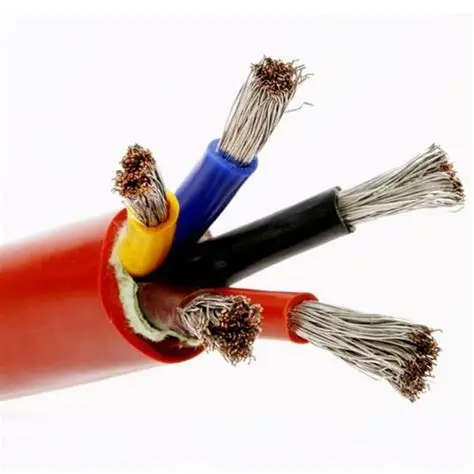

Product Overview
PATANIYA Heat Resistant cables are specially designed to withstand higher operating temperatures while ensuring reliable electrical performance.
The insulation is manufactured using a specially formulated Heat Resistant (HR) PVC compound capable of withstanding temperatures up to 105°C.
This enables the cables to tolerate overload conditions and deliver approximately 30% higher current carrying capacity, making them ideal for residential, commercial, and industrial applications.
Technical Data (HR)
| Nominal Area | Conductor Structure | Insulation Thickness | Max DC Resistance | Current Rating |
|---|---|---|---|---|
| 0.75 mm² | 24/0.20 | 0.6 mm | 26.0 Ω/km | 7 Amps |
| 1.0 mm² | 14/0.30 | 0.7 mm | 18.1 Ω/km | 14 Amps |
| 1.5 mm² | 22/0.30 | 0.7 mm | 12.1 Ω/km | 18 Amps |
| 2.5 mm² | 36/0.30 | 0.8 mm | 7.41 Ω/km | 26 Amps |
| 4.0 mm² | 56/0.30 | 0.8 mm | 4.95 Ω/km | 33 Amps |
| 6.0 mm² | 84/0.30 | 0.8 mm | 3.30 Ω/km | 42 Amps |
