Multi Core Flexible Cables
Premium quality multi-core flexible cables engineered for durability, smooth flexibility, and reliable electrical performance across residential, commercial, and industrial use.
1100V Voltage Grade
Manufactured with high-performance copper conductors suitable for voltage grade up to 1100V.
Multi-Core Flexibility
Flexible bright electrolyte annealed copper conductors ensure easy installation and longer life.
Heavy Duty Protection
PVC insulated and ST-1 PVC sheathed construction provides excellent durability and protection.
Product Overview

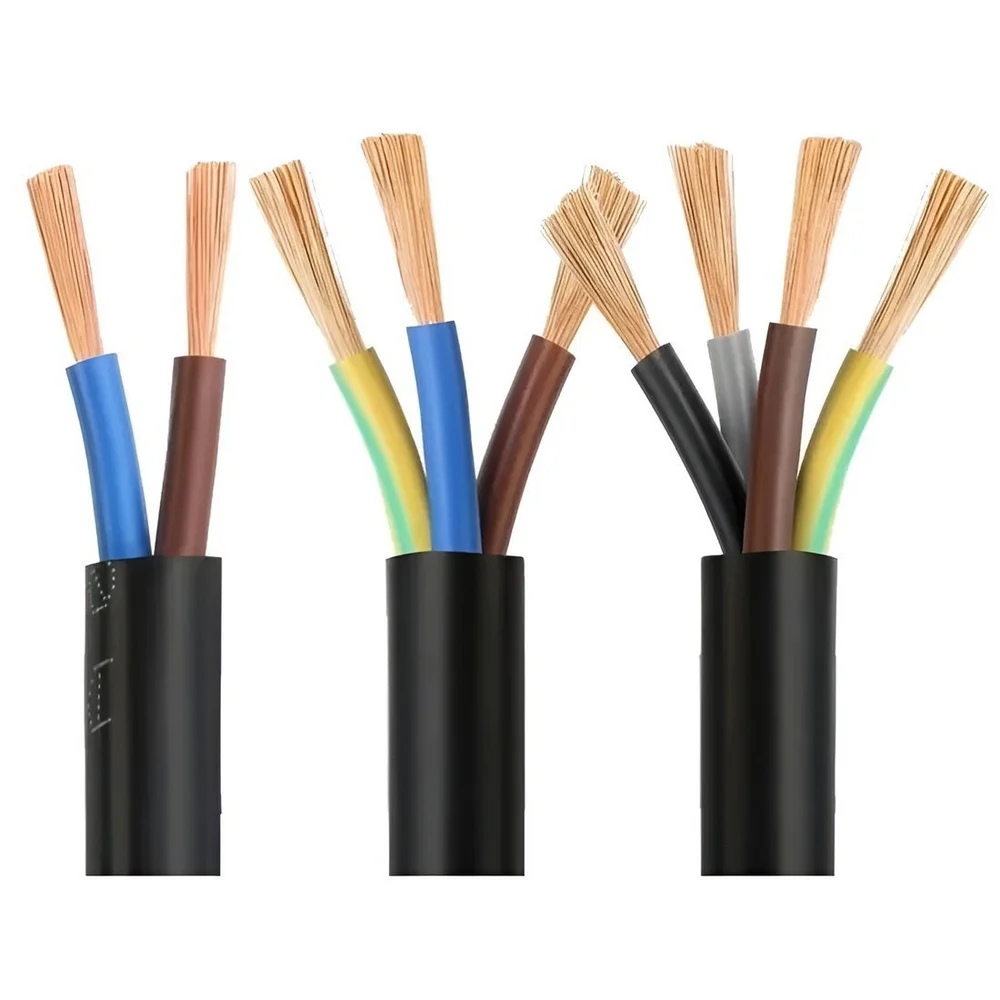

High-quality multi-core PVC insulated and PVC sheathed cables with copper conductors in voltage grade 1100V conforming to IS:694.
The bright electrolyte annealed flexible copper conductors are bunched together with Type 'A' PVC insulation and colour coding for easy identification.
The cables are overall sheathed with ST-1 PVC compound, ensuring enhanced durability, flexibility, safety, and long service life.
Technical Data
| Area (mm²) | Structure (No./Dia) | Insulation Thickness | 2 Core OD | 3 Core OD | 4 Core OD | Current Rating |
|---|---|---|---|---|---|---|
| 0.50 | 16/0.20 | 0.6 mm | 6.20 mm | 6.60 mm | 7.1 mm | 5 Amps |
| 0.75 | 24/0.20 | 0.6 mm | 6.60 mm | 7.0 mm | 7.6 mm | 7 Amps |
| 1.0 | 32/0.20 | 0.6 mm | 6.80 mm | 7.2 mm | 7.9 mm | 12 Amps |
| 1.5 | 30/0.25 | 0.6 mm | 7.40 mm | 7.9 mm | 8.8 mm | 15 Amps |
| 2.5 | 50/0.25 | 0.7 mm | 9.0 mm | 9.8 mm | 10.5 mm | 20 Amps |
| 4.0 | 56/0.30 | 0.8 mm | 10.4 mm | 11.1 mm | 12.2 mm | 26 Amps |
